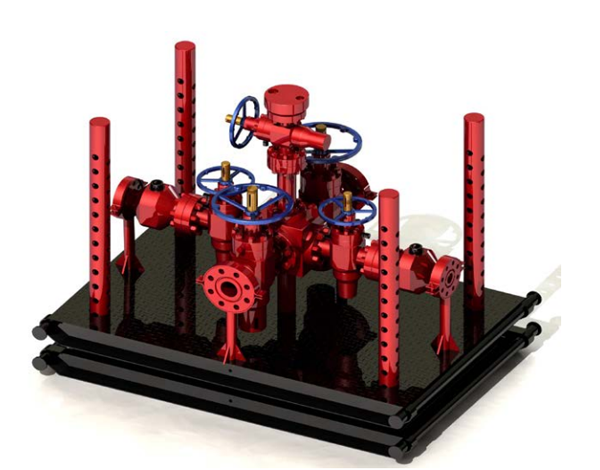

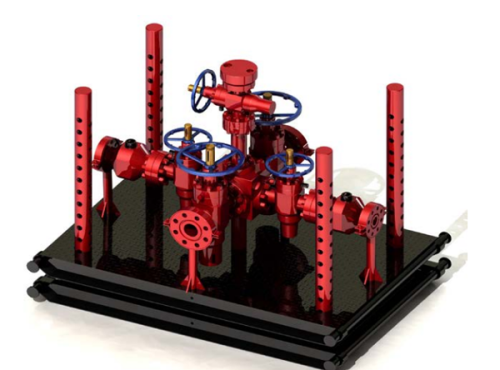

Kill manifold is a necessary part in well-control assembly, its function includes as follows：
♦ to pump drilling fluid into well barrel to control the pressure in oil/gas well.
♦ to inject the fresh water into wellhead so as to avoid fire and burn as blowout.
♦ to inject extinguishant into well barrel as blowout and on fire.
| 序号 | 型 号 | 工作压力 | 主 通 径 mm(in) | 旁 通 径 mm(in) | 备 注 | ||||||||||||||||||||||||||||
| SN | Type | MPa(Psi) | Main bore | Side bore | |||||||||||||||||||||||||||||
| 1 | YG14 | 14MPa (2000Psi) |
103(4-1/16”) 80(3-1/8”) 65(2-9/16”) 52(2-1/16”) |
103(4-1/16”) 80(3-1/8”) 65(2-9/16”) 52(2-1/16”) |
也可根据油田用户的 实际需求提供各种组 合形式 Various make-up models shall be provided according to the actual requirement of user in any oil fields |
||||||||||||||||||||||||||||
| 2 | YG21 | 21MPa (3000Psi) |
103(4-1/16”) 80(3-1/8”) 65(2-9/16”) 52(2-1/16”) |
103(4-1/16”) 80(3-1/8”) 65(2-9/16”) 52(2-1/16”) |
|||||||||||||||||||||||||||||
| 3 | YG35 | 35MPa (5000Psi) |
103(4-1/16”) 80(3-1/8”) 65(2-9/16”) 52(2-1/16”) |
103(4-1/16”) 80(3-1/8”) 65(2-9/16”) 52(2-1/16”) |
|||||||||||||||||||||||||||||
| 4 | YG70 | 70MPa (10000Psi) |
103(4-1/16”) 78(3-1/16”) 65(2-9/16”) 52(2-1/16”) |
103(4-1/16”) 78(3-1/16”) 65(2-9/16”) 52(2-1/16”) |
|||||||||||||||||||||||||||||
| 5 | YG105 | 105MPa (15000Psi) |
103(4-1/16”) 78(3-1/16”) 65(2-9/16”) 52(2-1/16”) |
103(4-1/16”) 78(3-1/16”) 65(2-9/16”) 52(2-1/16”) |
|||||||||||||||||||||||||||||
