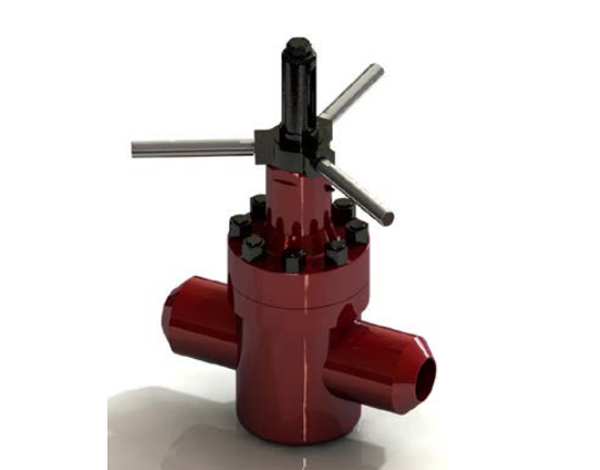

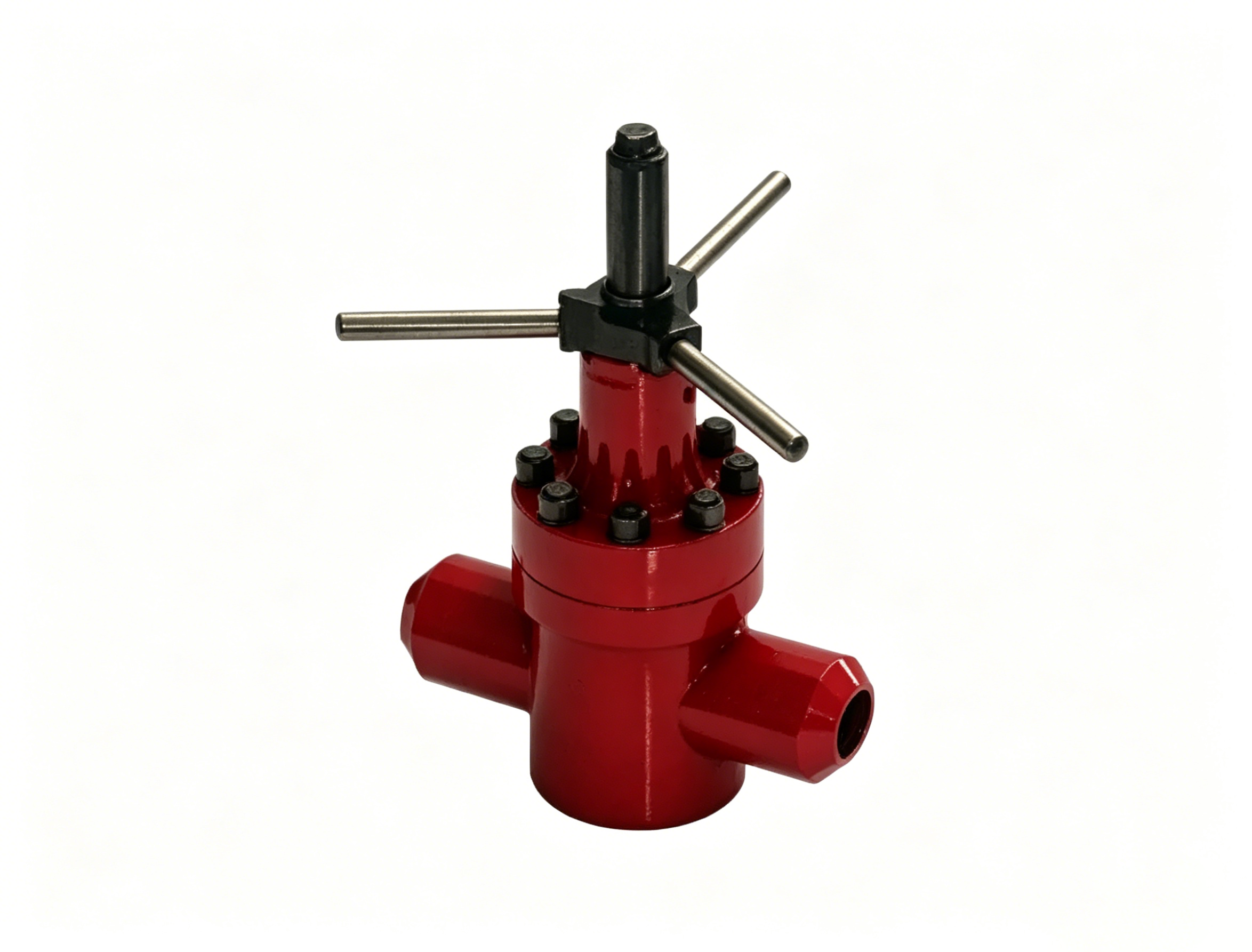

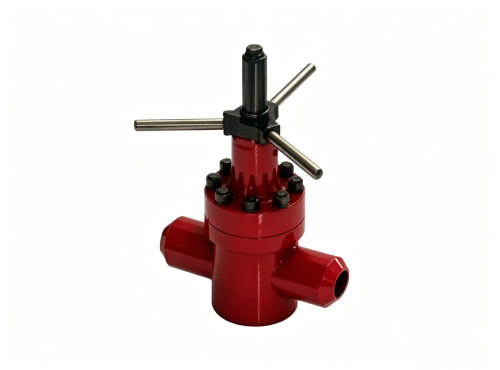

Mud Valves are solid gate, rising stem, gate valves with resilient seals. They are purpose made for mud, cement, fracturing and water service and are easy to operation and simple to maintain.

Application

♦ Oil and Gas lines

♦ Wellheads

♦ Manifolds and Pipelines

♦ Crude Oil and Sour Gas

♦ Well Treating Chemicals

♦ Drilling Chemicals

♦ Water Flood Lines

♦ Abrasive Drilling Mud

♦ Design specifically for Abrasive and Erosive use

♦ All Valves have 17-4 PH Stainless Steel Stems

♦ API 6A PSL1, 2 and 3 available

♦ Gate can be supplied in Nickel-plated Carbon Steel, Monel, Aluminum Bronze or Stainless Steel.

♦ Stainless or Carbon Steel Inserts with Nitrile or HNBR Elastomer

♦ Pressure Tested in Accordance with API 6A or API 6D

♦ Sour Service Models to NACR MR-01-75

♦ Available with Pressure Ratings up to 5000 psi in 2″, 3″, 4″, 5″×4″ and 6″×4″ Valves Sizes

♦ 75000 psi Valves To Cater for High Pressure Demands

♦ Placed open Modern Drilling Mud Systems in Sizes 2″, 3″, 4″, 5″ and 6″

Outlets

♦ Flanged Ends

♦ Hammer Union or Hub Ends

♦ Threaded Connection

♦ Butt-Weld Ends

♦Between the gate and seat adopts metal seal or non-metal seal as required
